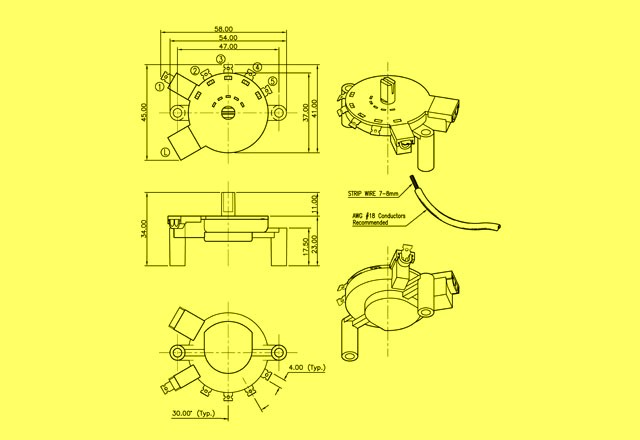

988 |
|
Five Speed Rotary
Switch |
 |
|
|
|
| |
|
|
|
 |
| Model |
: |
988 |
| Rating |
: |
UL, CSA -
6A 125VAC,
3A 250VAC,
Temp. 85°C
TÜV - 3(0.5)A 250VAC, T85 |
Suitable
For |
: |
UL1015 AWG#18 wire or
UL3321 AWG#18 wire or
0.5mm2 - 1.0mm2 wire
(Strip wire 7-8mm) |
| Push wire & Soldering terminals |
|
| Operation Sequence |
| Position |
Circuit |
| 1 |
OFF |
| 2 |
L-1 |
| 3 |
L-2 |
| 4 |
L-3 |
| 5 |
L-4 |
| 6 |
L-5 |
|
|
